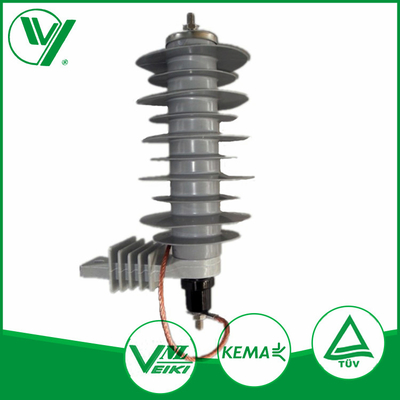

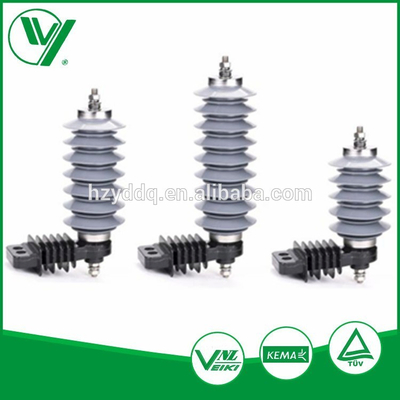

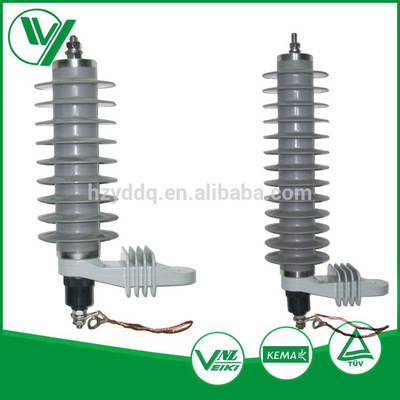

Outdoor Brace-Type Surge Arrester HY5WBG-17/50 17kV Polymer Housing

MOQ:	1
цена:	1

Detail Information

Product Description

Detail Information

Сертификация:

ISO9001

Модель №:

HY5WBG-17/50

Тип установки:

Параллельный захватчик

Материал:

Zno

Жилищный материал:

Полимер

Рейтинг напряжения:

17 кВ

Ток разгрузки:

5 кА

Оцененное напряжение:

17 kV

Управлять непрерывным напряжением:

13,6 кВ

Максимальное напряжение тока DC:

25 kV

Минимальный крутой импульс:

57,5 кВ

Максимальный импульс молнии:

50 KV

Максимальный импульс работы:

42,5 кВ

Постоянный ток:

0,5 мамы

Резистивный ток:

250 uA

Гнуть сопротивление:

1,6 кН

Выделить:

17kV polymer surge arrester

outdoor brace-type lightning arrester

HY5WBG-17/50 surge protector

Product Description

Outdoor Line Class Brace-Type Surge Arrester (HY5WBG-17/50)

Product Specifications

Attribute	Value
Model NO.	HY5WBG-17/50
Installation	Parallel Arrester
Application	Substation
Size	Medium
Operation Voltage	Low Voltage
Shape	Cuboid
Material	ZnO
Brand	Yongde
Housing Color	Grey
Housing	Polymer
Voltage	17kv
Discharge Current	5ka
Transport Package	Carton
Specification	GB IEC
Trademark	YongDe
Origin	China
HS Code	85354000
Production Capacity	50,000 PCS/Year

Product Description

Brace-Type Surge Arrester

Operating Conditions

Suitable for both outdoor and indoor operation
Maximum altitude: 2000m
Power frequency range: 48Hz to 62Hz
Power frequency voltage must not exceed arrester's continuous operative voltage
Maximum earthquake intensity: 7 degree
Maximum wind speed: 35m/s

Construction Features and Operation Principle

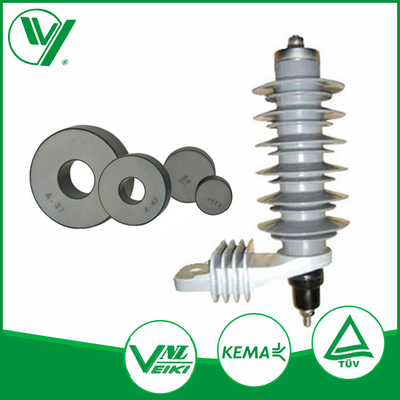

The arrester features non-linear high-quality metal oxide varistor internals with a silicone rubber molded exterior.

Under normal conditions, the surge arrester maintains high resistance with only microampere current flow, ensuring no impact on equipment operation. During overvoltage events, the arrester switches to low resistance, conducting kilo-ampere current while maintaining voltage within safe limits to protect connected equipment.

Technical Specifications
